HPE6-A46 実際試験問題と解答 - 模擬練習 - 受験自信を増やす

Question No : 1

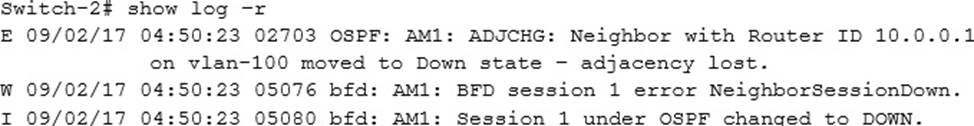

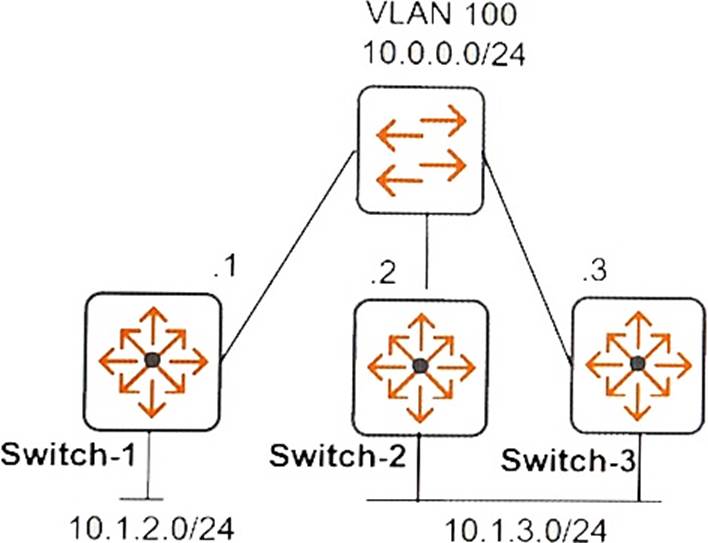

Refer to the exhibits.
Exhibit 1

Exhibit 2

Exhibit 1 shows the topology for the network. The network administrator sees the log entries shown in Exhibit 2.
Which type of failure is indicated?

A.A link between Switch-1 and Switch-2 went down. BFD detected the lost connectivity and behaved as expected.
B.Graceful restart helper was not enabled on Switch-2, so BFD was unable to operate correctly, and the session was taken down.
C.A hardware issue caused a unidirectional link; BFD detected the issue at Layer 2 and prevented a broadcast storm.
D.BFD was set up incorrectly on Switch-2, so it caused Switch-2 to lose adjacency with Switch-1 rather than repair the session.

正解:

Question No : 2
Network administrators need to configure a BGP neighbor on an AOS-Switch.
What defines the neighbor as an iBGP neighbor?

A.It has BGP synchronization enabled.
B.It has an AS number in the range of 64512 to 64535.
C.Its update source is set to a private company IP address.
D.Its remote-AS is the same as the AOS-Switch BGP A

正解:

Question No : 3
An AOS-Switch enforces 802.1X. It receives an Access-Accept with this HPE VSA from its Radius server:
Attribute Name and ID = HPE-User-Role (25) Value = contractor
The switch then rejects the client.
What is one requirement for the switch to accept the message and authorize the client?

A.The initial user role must be set to the factory default permit any role.
B.User role authorization must be enabled globally on the switch.
C.An aaa authentication local user group must have the contractor name.
D.The RADIUS server settings must permit dynamic authorization.

正解:

Question No : 4
What is a reason to implement PIM-DM as opposed to PIM-SM?

A.to control exactly which multicast groups are routed through the network
B.to permit a higher density of RP routers in the network core
C.to conserve bandwidth over WAN links
D.to use on high-bandwidth routed connections

正解:

Question No : 5

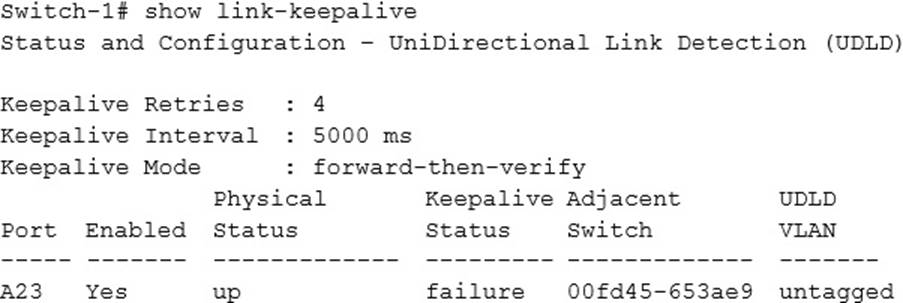

Refer to the exhibit.

Switch-1 and Switch-2 connect on interface A23. The switches experience a connectivity issue. The network administrator sees that both switches show this interface as up. The administrator sees the output shown in the exhibit on Switch-1.
What is a typical issue that could cause this output?

A.asymmetric routing introduced by a routing protocol
B.an issue with VLAN mismatch
C.mismatched subnet mask on the VLAN for the link
D.a jumbo frame mismatch

正解:

Question No : 6

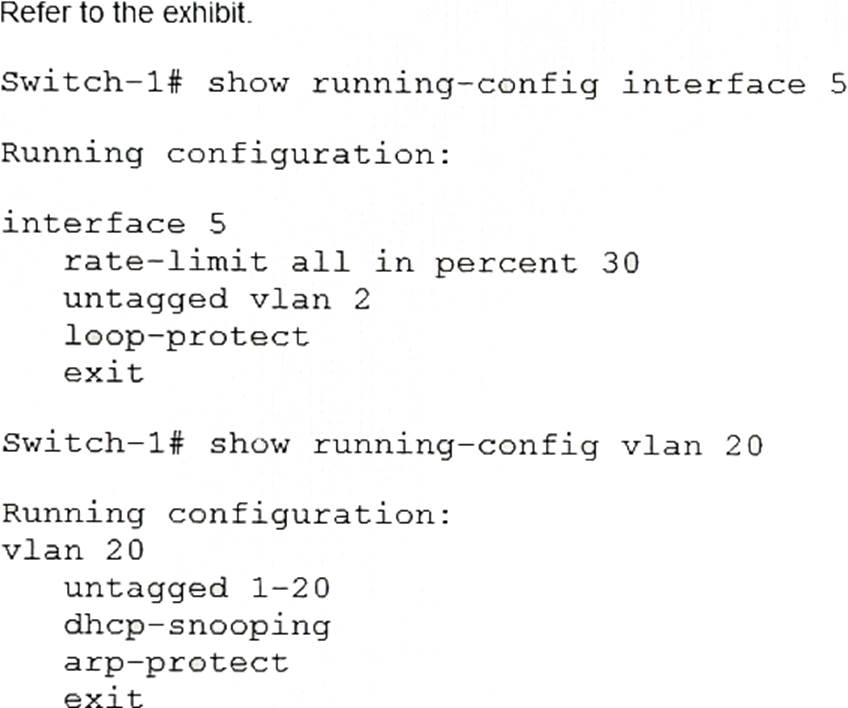

Refer to the exhibit.

The exhibit shows configurations for interface 5 and VLAN 20. Note that DHCP snooping and ARP protection are also enabled.
A network administrator finds that interface 5 on an AOS-Switch is disabled. The administrator re-enables the interface, but it shuts down again.
What should the administrator investigate?

A.a device that sends too much unicast traffic
B.rogue DHCP server
C.a loop on the interface
D.a device that sends unauthorized ARP messages

正解:

Question No : 7
What is one difference between BPDU protection and root guard?

A.BPDU protection works with RPVST+, RSTP, and MST
B.Root guard works with RSTP or MSTP, but not RPVST+.
C.BPDU protection blocks a port if it receives any BPDU, but root guard blocks a port only if the BPDU indicates a better root path.
D.BPDU protection is typically implemented on edge ports, but root guard is typically implemented on uplinks with the root port role.
E.BPDU protection drops BPDUs received on a port, but does not block the port. Root guard blocks the port if it receives a BPD

正解:

Question No : 8
The implementation plan for AOS-Switches calls for them to implement port-based tunneled node. The Aruba Mobility Controllers that will support the AOS-Switches run software 8.1. The controllers will also support APs, are managed by Mobility Master, and use clustering.
Which issue with this plan needs to be addressed?

A.The controllers cannot support tunneled node with AOS-Switches when they are managed by the Mobility Master.
B.The switches cannot connect to controllers that also support APs.
C.The controllers must have their software updated before they can support the switches.
D.The switches must use role-based tunneled node to work with clustering controllers.

正解:

Question No : 9

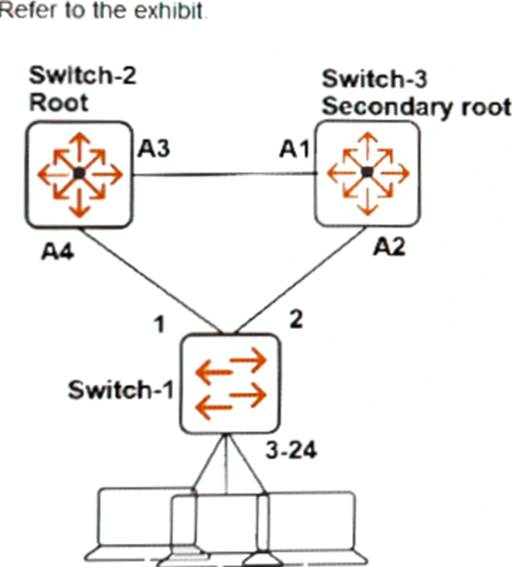

Refer to the exhibit.

A network administrator wants to add the protections of root guard to the network.
Based on the spanning tree topology, on which ports should the network administrator implement root guard?

A.3-24
B.1 and 2
C.A1 and A2
D.2 and A3

正解:

Question No : 10
A network administrator configures DHCP snooping on VLAN 2.
How does the switch handle DHCP traffic that arrives in this VLAN on an untrusted interface?

A.It accepts packets from a DHCP server, but drops client packets.
B.It drops all DHCP traffic and logs a security event.
C.It accepts both client and server packets as long as they match the DHCP binding table.
D.It accepts client packets, but drops packets from a DHCP server.

正解:

Question No : 11
A company deploys AOS-Switches at sites with inexperienced IT staff. The main office network administrators want to monitor thresholds to generate alerts on branch switches.
What should be set up for this purpose?

A.an SNMP trap
B.an RMON alarm
C.an auto-config server
D.an sFlow instance

正解:

Question No : 12
A network administrator needs to create a backplane stack with four AOS-Switches. The administrator wants to choose which switch becomes the commander.
Which procedure meets those needs?

A.Boot all of the switches at the same time and then connect the backplane stacking links. Then, access the desired commander, and make sure it has member ID 1.
B.Configure backplane switches settings on each switch while disconnected. Make sure the desired commander has priority value 1. Then, connect the switches.
C.Boot up the desired commander first and make sure stacking is enabled on it. Then, connect the stacking links and boot the other switches.
D.Configure backplane switching settings on each switch while disconnected. Make sure the desired commander has member ID 1. Then, connect the switches.

正解:

Question No : 13

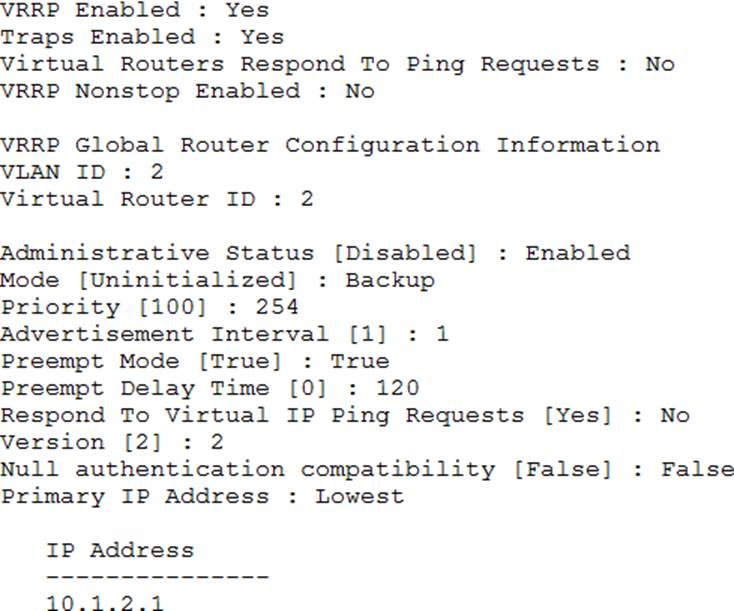

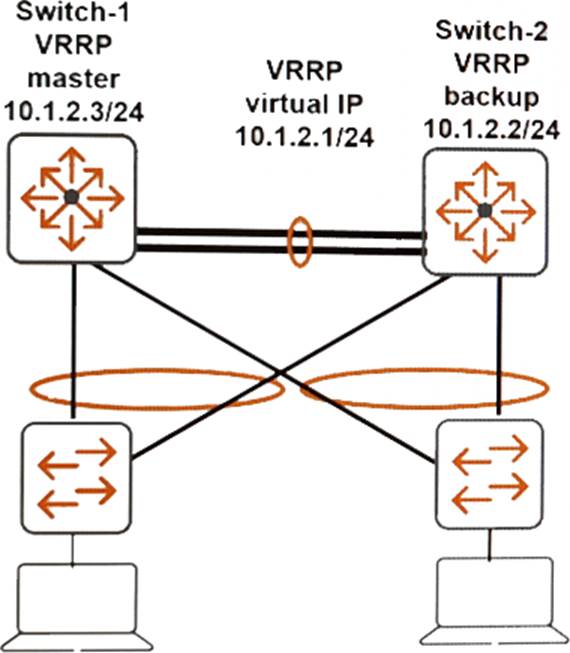

Refer to the exhibits.
Exhibit 1

Exhibit 2

Switch-1 and Switch-2 are configured to provide VRRP in VLAN 2. The default gateway for VLAN 2 is set to the VRRP virtual IP. Client-1 in VLAN 2 cannot ping its default gateway.
Based on the exhibits, what can administrators determine?

A.The VRRP preempt delay time has not yet expired, and administrators should try to ping the gateway again in several minutes.
B.Switch-1 and Switch-2 have the same virtual router I
C.The conflict interferes with connectivity.
D.Preempt mode is enabled on both Switch-1 and Switch-2, so the Master role continues to alternate between them, and the pings go astray.
E.This is the expected behavior, and Switch-1 should still be able to route traffic for Client-1.

正解:

Question No : 14
A network administrator needs to create a QoS policy on an AOS-Switch.
What is one component that the administrator must create before the policy?

A.an extended IPv4 ACL
B.a traffic behavior
C.an extended MAC ACL
D.a traffic class

正解:

Question No : 15
Which switches can be deployed in a mesh topology for backplane stacking?

A.Aruba 2920 switches
B.Aruba 2930F switches
C.Aruba 2930M switches
D.Aruba 3810 switches

正解:

HP HPE6-A46 問題練習
