Question No : 1
The command to disable RIP protocol automatic route aggregation on an MSR router is ().

A.[Router-rip-1] undo summary
B.[Router-rip-1] undo auto-summary
C.[Router-Serial1/0] undo summary
D.[Router-Serial1/0] undo auto- summary

正解:

Question No : 2

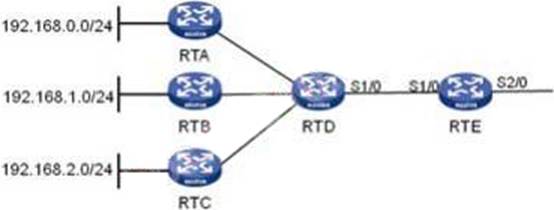

Dynamic routing protocols are not enabled between any routers; only static routes can be configured.

The correct configuration on the RTE should be ().

A.ip route-static 192.168.0.0 255.255.254.0 S1/0
B.ip route-static 192.168.0.0 255.255.254.0 S2/0
C.ip route-static 192.168.0.0 255.255.252.0 S1/0
D.ip route-static 192.168.0.0 255.255.252.0 S2/0

正解:

Question No : 3
In the network shown in the figure, dynamic routing protocols are not enabled between any routers; only static routes can be configured.

The correct configuration on the RTE should be ().

A.ip route static 172.16.0.0 255.255.254.0 S1/0
B.ip route static 172.16.0.0 255.255.254.0 S2/0
C.ip route static 172.16.0.0 255.255.252.0 S1/0
D.ip route static 172.16.0.0 255.255.252.0 S2/0

正解:

Question No : 4
There are 4 routes in the routing table: 192.168.0.0/24, 192.168.1.0/24, 192.168.2.0/24, and 192.168.3.0/24.
If you want to perform route aggregation, the correct aggregated route is ().

A.192.168.0.0/22
B.192.168.0.0/23
C.192.168.0.0/24
D.192.168.0.0/25

正解:

Question No : 5
There are 4 routes in the routing table: 172.16.0.0/24, 172.16.1.0/24, 172.16.2.0/24, and 172.16.3.0/24.
If you want to perform route aggregation, the correct aggregated route is ().

A.172.16.0.0/22
B.172.16.0.0/23
C.172.16.0.0/24
D.172.16.0.0/25

正解:

Question No : 6
An administrator wants to configure a RIP route priority value of 60 on an MSR router. Which of the following commands is correct?

A.[Router] RIP preference 60
B.[Router] preference 60
C.[Router-rip-1] rip preference 60
D.[Router-rip-1] preference 60

正解:

Question No : 7
An administrator wants to configure an OSPF route priority value of 100 on an MSR router. Which of the following commands is correct?

A.[Router] ospf preference 100
B.[Router] preference 100
C.[Router-ospf-1] ospf preference 100
D.[Router-ospf-1] preference 100

正解:

Question No : 8
An administrator wants to configure an OSPF route priority value of 60 on an MSR router. Which of the following commands is correct?

A.[Router] ospf preference 60
B.[Router] preference 60
C.[Router-ospf-1] ospf preference 60
D.[Router-ospf-1] preference 60

正解:

Question No : 9
As shown in the figure, the headquarters' MSR router is connected to the branch office via two 100Mbps Ethernet links. To fully utilize the existing bandwidth resources, which of the following routing schemes is optimal?

A.The primary link runs OSPF, and the backup link runs RI
B.RIP protocol runs simultaneously on two Ethernet links between headquarters and branch offices to implement ECM
C.The primary link runs RIP, configured with static routes, with the outgoing interface pointing to the backup link, and a priority value of 150.
D.The primary link runs OSPF, configured with static routes, and the outgoing interface points to the backup link.

正解:

Question No : 10
As shown in the figure, the headquarters' MSR router is connected to the branch office via two 100Mbps Ethernet links. To fully utilize the existing bandwidth resources, which of the following routing schemes is optimal?

A.OSPF protocol runs simultaneously on two Ethernet links between headquarters and branch offices, implementing ECM
B.The primary link runs OSPF, and the backup link runs RI
C.The primary link runs RIP, configured with static routes, with the outgoing interface pointing to the backup link, and a priority value of 150.
D.The primary link runs OSPF, configured with static routes, and the outgoing interface points to the backup link.

正解:

Question No : 11

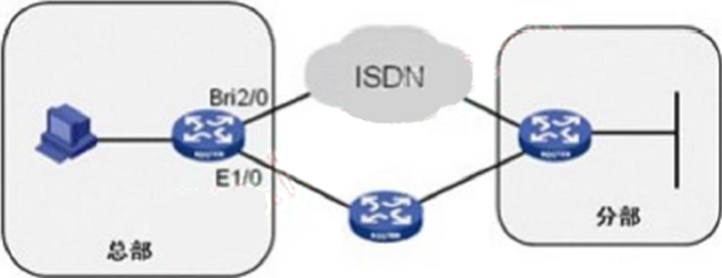

As shown in the figure, the headquarters' MSR router is connected to the branch office via Ethernet interface E1/0, and the connection is backed up via the ISDN network.

Which of the following options are the most reasonable and feasible at this point?

A.RIP protocol runs on the Ethernet link between headquarters and branch offices. A static route is configured with the outgoing interface Bri2/0 and a priority value of 200.
B.OSPF runs on the Ethernet link between headquarters and branch offices. Configure a static route with the outgoing interface Bri2/0 and a priority value of 5.
C.OSPF runs on the Ethernet link between headquarters and branch offices. A static route is configured with the outgoing interface Bri2/0 and a priority value of 0.
D.RIP protocol runs on the Ethernet link between headquarters and branch offices. Configure static routes with the outgoing interface Bri2/0 and the default priority value.

正解:

Question No : 12
As shown in the figure, the headquarters' MSR router is connected to the branch office via Ethernet interface E1/0, and the connection is backed up via the ISDN network.

Which of the following options are the most reasonable and feasible at this point?

A.RIP protocol runs on the Ethernet link between headquarters and branch offices. Configure static routes with the outgoing interface Bri2/0 and the default priority value.
B.OSPF protocol runs on the Ethernet link between headquarters and branch offices. Configure a static route with the outgoing interface Bri2/0 and a priority value of 5.
C.OSPF runs on the Ethernet link between headquarters and branch offices. A static route is configured with the outgoing interface Bri2/0 and a priority value of 0.
D.RIP protocol runs on the Ethernet link between headquarters and branch offices. A dynamic route backup group is configured on the outgoing interface Bri2/0.

正解:

Question No : 13

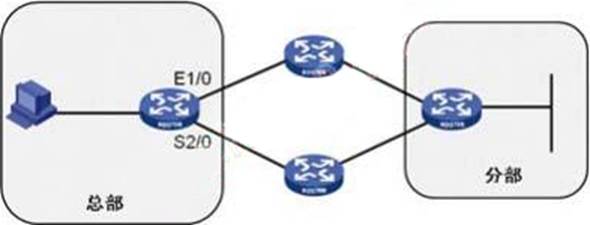

As shown in the figure, the actual bandwidth of the MSR router's Ethernet interface E1/0 is 10Mbps, and the actual link bandwidth of the serial port S2/0 is 64Kbps.

To prioritize the use of high-bandwidth links and achieve route backup, which of the following solutions is the most reasonable?

A.Both the Ethernet interface E1/0 and the serial port S2/0 run the RIP protocol.
B.Configure static routes, with serial port S2/0 and Ethernet interface E1/0 as the outgoing interfaces, and set the same priority value.
C.Run the RIP protocol on the Ethernet interface. Then configure a static route, with the outgoing interface being serial port S2/0 and the priority value set to 80.
D.The Ethernet interface runs the OSPF protocol. Then configure a static route, with the outgoing interface being serial port S2/0, and the priority value set to 80.

正解:

Question No : 14

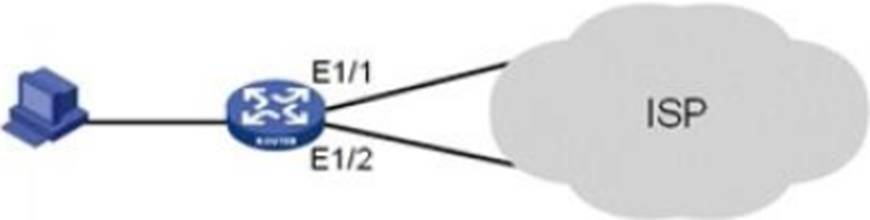

As shown in the figure, a local area network is connected to an ISP via an MSR router. If packet-based routing is to be implemented on the outgoing interface of the MSR router, which configurations are necessary?

A.[MSR-Ethernet1/1] ip fast-forwarding inbound [MSR-Ethernet1/2] ip fast-forwarding inbound
B.[MSR-Ethernet1/1] ip fast-forwarding outbound [MSR-Ethernet1/2] ip fast-forwarding outbound
C.[MSR-Ethernet1/1] undo ip fast-forwarding inbound [MSR-Ethernet1/2] undo ip fast-forwarding inbound
D.[MSR-Ethernet1/1] undo ip fast-forwarding outbound [MSR-Ethernet1/2] undo ip fast-forwarding outbound

正解:

Question No : 15
In H3C devices, the default priority value for RIP protocol routing is _____.

A.10
B.100
C.150
D.255

正解:
