Question No : 1
If the user-specified configuration file does not exist, the router is initialized using ().

A.Default configuration
B.Last saved configuration
C.Most frequently used configuration
D.Use the minimum configuration

正解:

Question No : 2

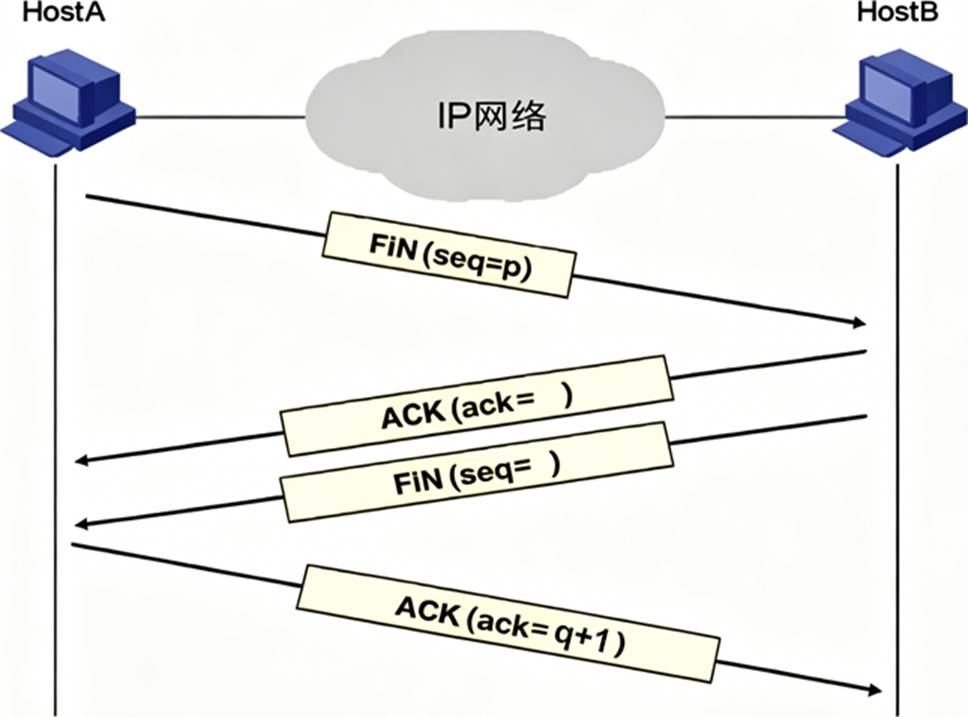

In the process of tearing down the TCP connection as shown in the figure, the x part of ACK should be filled with ().

A.p
B.q
C.p+1
D.q+1

正解:

Question No : 3
A router is connected to port gigabitethemet1/0/4 of switch SWA.
If an administrator wants to disable the spanning tree function on this port, which of the following commands is needed?
A. [swa-gigabitethernet1/0/4] undo stp enable
B. [swa] stp disable
C. [swa-gigabitetheret1/0/4] stp disable
D. [swa] undo stp enable

正解: A

Question No : 4
If the public IP address of the NAT device is dynamically assigned by the ISP via ADSL, then () can be used.

A.basic nat
B.Easy IP
C.Using napt with address pooling
D.Static NAT

正解:

Question No : 5
Switches learn their MAC address tables by recording the correspondence between the parentheses () in the received data frames and the corresponding port numbers.

A.Destination IP address
B.Destination MAC address
C.Source MAC address
D.Source IP address

正解:

Question No : 6
Two routers, RTA and RTB, are directly connected via their g0/0 ports. RTA's g0/0 IP address is 192.168.1.1/30, and RTB's g0/0 address is 192.168.1.5/24. Which of the following statements is correct?
A. The RTA's ARP cache contains 192.168.1.5 and its corresponding MAC address.
B. RTA can ping RTB.
C. The RTB's ARP cache contains 192.168.1.1 and its corresponding MAC address.
D. RTB can ping RTA.

正解: D

Question No : 7
The port gigabiethermet1/0/1 of the switch SWA has been configured as a trunk port type.
To allow VLAN 2 and VLAN 3 to pass through this port, which of the following commands should be used?

A.[swa-gigabitethernet1/0/1] undo port trunk permit vlan 2
B.[swa] port trunk permit vlan 2 3
C.[swa-gigabitethernet1/0/1] port trunk permit vlan 2 3
D.[swa] undo port trunk permit vlan 1

正解:

Question No : 8
An MSR router connects to the Internet via its S1/0 interface and to a local area network (LAN) host via its GE0/0 interface. The LAN network segment is 10.0.0.0/8. There is an FTP server on the public network with the address 202.102.2.1. The IP address and routing have been configured, and the LAN host can access the Internet and the FTP server normally.
Add a new configuration to the router:
ACL Advanced 3000
rule 0 deny tcp source 10.1.1.1 0 source-port eq ftp destination 202.102.2.1 0
What intentions can this ACL achieve by applying it to the inbound and outbound directions of the GE0/0 interface?

A.Only block FTP data connections from the host with source address 10.1.1.1 to the destination host 202.102.2.1 on port 20 (TCP 20).
B.Prohibit the host with source address 10.1.1.1 from initiating an FTP connection to the destination host 202.102.2.1.
C.Only block FTP control connections from the host with source address 10.1.1.1 to the destination host 202.102.2.1 on port 21 (TCP 21).
D.There are no restrictions on FTP connections initiated from 10.1.1.1 to 202.102.2.1.

正解:

Question No : 9
After enabling the system information monitoring function in the console, use the () command to open the screen output of debugging information.

A.Terminal screen
B.Terminal monitor
C.Terminal debugging
D.Terminal information

正解:

Question No : 10
One of the customer's MSR routers is connected to the Internet via the WAN interface S1/0; and to the office network via the LAN interface GE0/0. Currently, office network users can access the Internet normally.
Add the following ACL configuration to the router:
ACL Advanced 3000
rule 0 deny icmp
rule 5 permit tcp destination-port eq 20
interface GigabitEthernet0/0
packet-filter 3000 inbound
packet-filter 3000 outbound
Which of the following is correct?

A.ICMP packets sent to the internet by office network users are blocked by this router.
B.FTP traffic initiated by office network users to the internet is allowed to pass through this router, while all other packets are blocked from passing through this router.
C.FTP traffic initiated by office network users and destined for this router can pass through normally.
D.Telnet packets initiated by office network users and destined for router ge0/0 can pass through normally.

正解:

Question No : 11
The main function of the physical layer of the OSI reference model is ().

A.Transmitting data from one host to another host.
B.Physical address definition
C.Establish end-to-end connection
D.The transmission of bit streams between terminal devices defines voltage, interfaces, cable standards, and transmission distances, etc.

正解:

Question No : 12
A default route a is configured on an MSR router running OSPF with a next-hop address of 100.1.1.1; at the same time, the router learns a default route b with the same next-hop address of 100.1.1.1 from its neighboring router via OSPF.
This router uses the default priority and cost values for all routing protocols, which of the following is correct?

A.The router's routing table contains only route 'a' because route 'a' has a cost of 0.
B.The router's routing table will only contain route b, because dynamic routing takes precedence.
C.The router's routing table only contains route a because route a has a higher priority.
D.Both routes a and b will be written into the routing table because they originate from different sources and do not conflict with each other.

正解:

Question No : 13
When configuring OSPF on a router, what configurations must be performed manually?

A.Configure router ID
B.Specify the network type for each OSPF-enabled interface.
C.Create an OSPF region
D.Create an OSPE process

正解:

Question No : 14
The default data transfer port used by .ftp is ( ).

A.23
B.20
C.21
D.22

正解:

Question No : 15
Suppose an MSR router obtains two routes to the destination network segment 100.120.10.25/24. The costs of these two routes are 120 and 10, and their priorities are 10 and 150, respectively.
Then the data packets destined for this address will ( ).

A.Prioritize matching routes with priority 150.
B.Prioritize matching routes with a cost of 120.
C.Prioritize matching routes with a cost of 10.
D.Prioritize matching routes with priority 10.

正解:
