DELL EMC DES-4421 問題練習

Question No : 1
Which I/O module is supported for Fabric B?

• A.MX5016s
• B.MSG610s
• C.MX5000s
• D.MX5108n

答えを確認する

正解:
Explanation:
Reference: https://hasanmansur.com/2019/01/08/mx7000-networking-part-1-introduction-components/

Question No : 2
What is a characteristic of MX7000 networking in Scalable Fabric Mode?

• A.Enabled by default, all switch-specific OS10EE capabilities are available.
• B.Layer 2 bridging is disabled be default and interfaces must join a bridge domain (VLAN) before being to forward frames.
• C.All switch interfaces are assigned to VLAN 1 by default and are in the same Layer 2 bridge domain.
• D.Available on MX9116n FSE and MX7116n FEM but not on the MX5108n.

答えを確認する

正解:
Explanation:
Reference: https://hasanmansur.com/2019/01/10/mx7000-networking-part-2-operating-modes-iom­selection/

Question No : 3

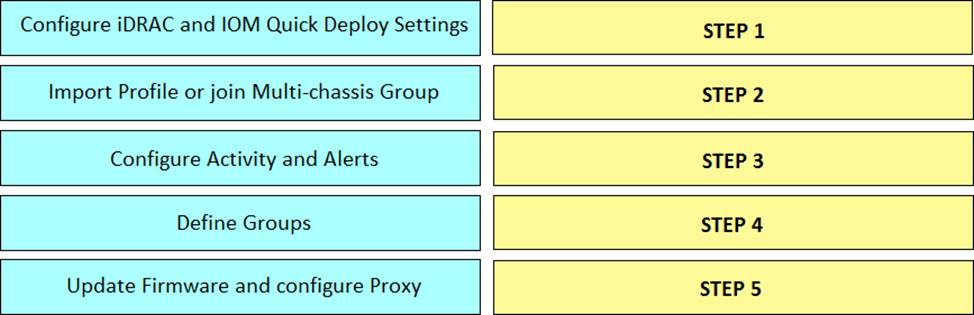

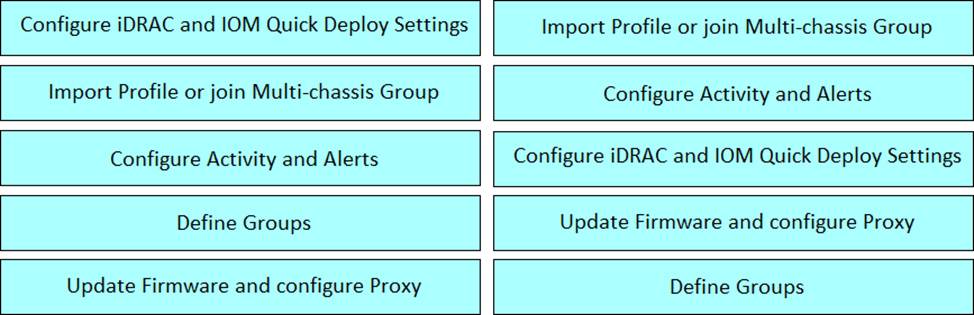

DRAG DROP
A technician is deploying a new MX7000 chassis using the Chassis Deployment Wizard.
What is the correct order o steps followed by the wizard?

答えを確認する

正解:

Question No : 4
An administrator is about to perform a firmware update on an MX9116n switch OS 10 from the CLI. The latest OS 10 switch firmware image has been downloaded and their TFTP server is set up.
Upon logged in with administrator credentials on the switch, which command should be used to start the update procedure?

• A.firmwaredownload tftp://server-ip/imagename
• B.install tftp://server-ip/imagename
• C.fwupdate tftp://server-ip/imagename
• D.upgrade tftp://server-ip/imagename

答えを確認する

正解:
Explanation:
Reference: https://topics-cdn.dell.com/pdf/smartfabric-os10-5-0_en-us.pdf

Question No : 5
A company has several MX7000-systems, four FX2 solutions, one M1000e, and several PowerEdge rack servers.
Which management interface is recommended for managing this range of systems?

• A.OpenManage Modular, no optional plugins required
• B.OpenManage Essentials
• C.OpenManage Modular with optional plugins
• D.OpenManage Enterprise

答えを確認する

正解:
Explanation:
Reference: https://i.dell.com/sites/csdocuments/Product_Docs/en/PowerEdge-Modular-Quick-Reference­Guide.pdf

Question No : 6
What can be used as the firmware update source for OME-M within an MX chassis?

• A.Server Update Utility Baseline from a Catalog
• B.Server Update Utility System Live Image (SLI)
• C.Dell Update package System Live Image (SLI)
• D.Dell Update Package Baseline from a Catalog

答えを確認する

正解:
Explanation:
Reference: https://topics-cdn.dell.com/pdf/openmanage-enterprise-modular-v10001-poweredge­mx7000_users-guide4_en-us.pdf

Question No : 7
What is the number of server-facing ports and the bandwidth of each port on the MXG610s? (Choose two.)

• A.8x 16 Gbps
• B.16x 32 Gbps
• C.16x 16 Gbps
• D.8x 32 Gbps

答えを確認する

正解:
Explanation:
Reference: https://i.dell.com/sites/csdocuments/Product_Docs/en/DellEMCNetworkingMXG610sSpecSheet.pdf (page 1)

Question No : 8
When performing “A1 the Box” management, what must be done to successfully connect to the Management Module?

• A.Configure PuTTY for a serial connection
• B.Change the baud rate to 128000
• C.Connect cables to the KVM
• D.Attach standard A-to-A USB cable to a laptop

答えを確認する

正解:

Question No : 9
A server sled has a single mezzanine card installed in the correctly supported slot.
To which IOM fabric(s) does the sled have access?

• A.Fabric A1 and Fabric A2
• B.Fabric A1 only
• C.Either Fabric A or Fabric B, depending on the configuration set in OME-M
• D.Fabric A1 and Fabric B1

答えを確認する

正解:
Explanation:
Reference: https://i.dell.com/sites/csdocuments/Product_Docs/en/dell_emc_poweredge_mx7000_technical_guide.pdf

Question No : 10
A new administrator has just taken over an MX7000 Multi-Chassis Management Group and two-racks of PowerEdge servers. The previous administrator no longer works at the company and is not available. No one knows the password for the OME-M interface and the default password is not working.
What must be used to reset the password?

• A.iDRAC for one of the compute sleds.
• B.Left ear control panel.
• C.RACADM using a serial connection
• D.Management Module jumpers

答えを確認する

正解:
Explanation:
Reference: https://www.dell.com/support/manuals/us/en/04/poweredge-mx7000/omem1.00.01_ug/recovering-passwords?guid=guid-553bf2dd-c491-4117-85f5-c2fbfde4ef12&lang=en-us
