Cisco 200-301 問題練習

Cisco Certified Network Associate 試験

最新更新時間: 2024/03/18,合計102問。

【2024年3月キャンペーン】:200-301 最新真題を買う時、日本語版と英語版両方を同時に獲得できます。

実際の問題集を練習し、試験のポイントを了解し、テストに申し込むするかどうかを決めることができます。

さらに試験準備時間の35%を節約するには、200-301 問題集を使用してください。

 / 6

Question No : 1
Which mode must be used to configure EtherChannel between two switches without using a negotiation protocol?

正解:
Explanation:
The Static Persistence (or “on” mode) bundles the links unconditionally and no negotiation protocol is used.
In this mode, neither PAgP nor LACP packets are sent or received.

Question No : 2

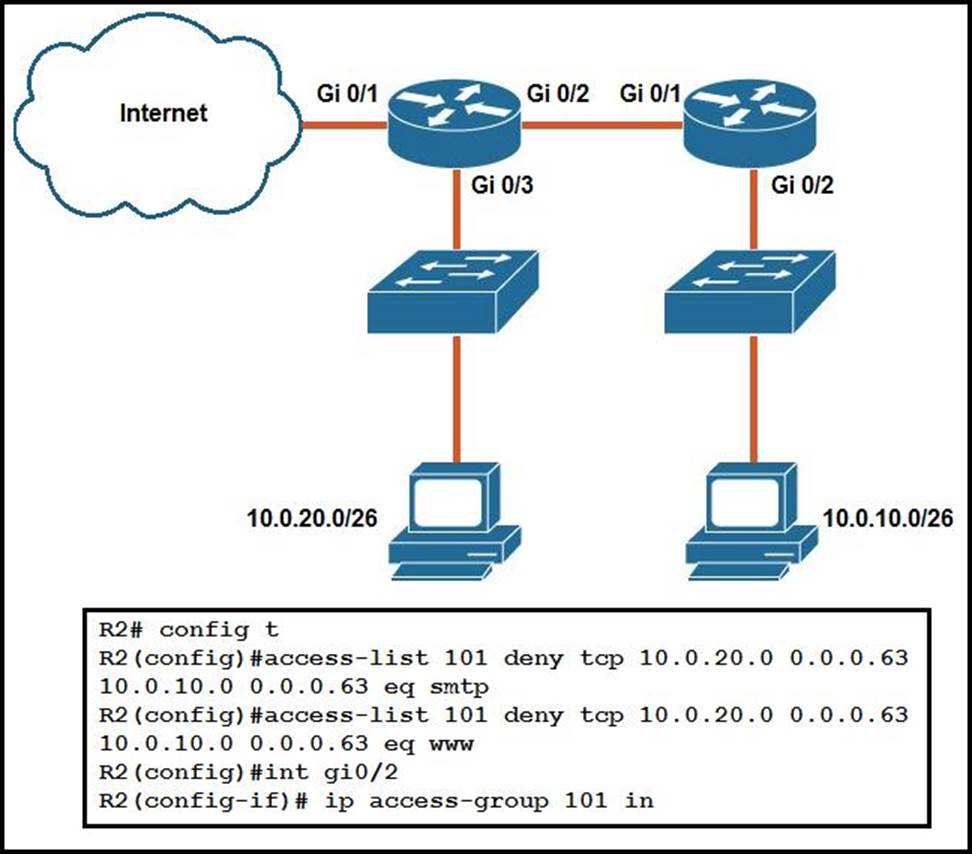

Refer to the exhibit.



An extended ACL has been configured and applied to router R2. The configuration started to work as intended.
Which two changes stop outbound traffic on TCP ports 25 and 80 to 10.0.20.0/26 from the 10.0.10.0/26 subnet while still allowing all other traffic? (Choose two)

正解:

Question No : 3
When a site-to-site VPN is used, which protocol is responsible for the transport of user data?

正解:
Explanation:
A site- to-site VPN allows offices in multiple fixed locations to establish secure connections with each other over a public network such as the Internet. A site-to-site VPN means that two sites create a VPN tunnel by encrypting and sending data between two devices. One set of rules for creating a siteto-site VPN is defined by IPsec.

Question No : 4

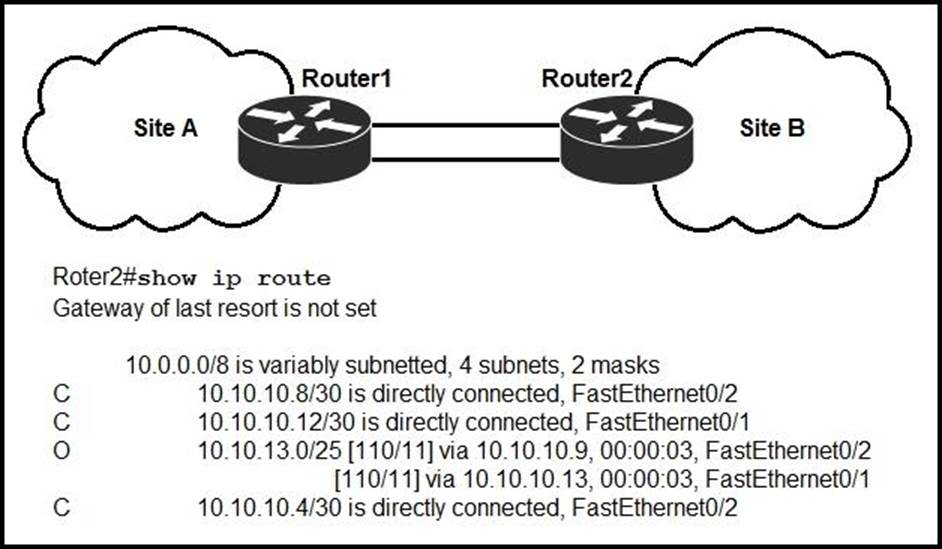

Refer to the exhibit.



If OSPF is running on this network, how does Router 2 handle traffic from Site B to 10.10.13.128/25 at Site A?

正解:
Explanation:
Router2 does not have an entry for the subnet 10.10.13.128/25. It only has an entry for 10.10.13.0/25, which ranges from 10.10.13.0 to 10.10.13.127.

Question No : 5

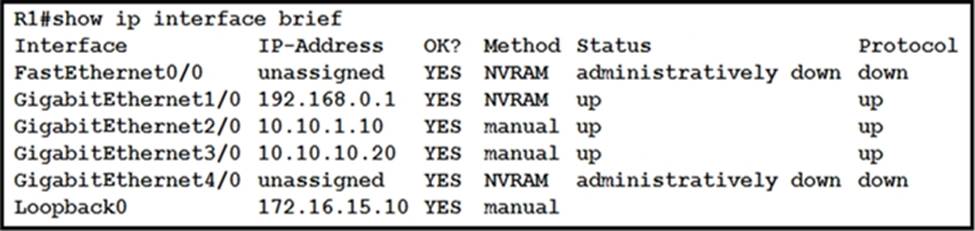

Refer to the exhibit.



What does router R1 use as its OSPF router-ID?

正解:
Explanation:
OSPF uses the following criteria to select the router ID:

Question No : 6
Which network allows devices to communicate without the need to access the Internet?

正解:
Explanation:
This question asks about the private ranges of IPv4 addresses.
The private ranges of each class of IPv4 are listed below:
Class A private IP address ranges from 10.0.0.0 to 10.255.255.255 Class B private IP address ranges from 172.16.0.0 to 172.31.255.255 Class C private IP address ranges from 192.168.0.0 to 192.168.255.255 Only the network 172.28.0.0/16 belongs to the private IP address (of class B).

Question No : 7
What makes Cisco DNA Center different from traditional network management applications and their management of networks?

正解:

Question No : 8
When a floating static route is configured, which action ensures that the backup route is used when the primary route fails?

正解:

Question No : 9

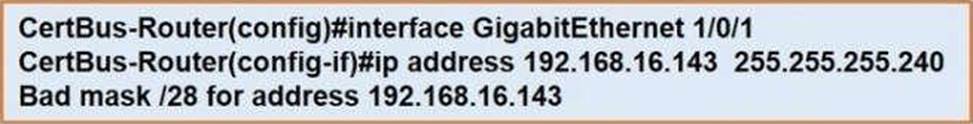

Refer to exhibit.



Which statement explains the configuration error message that is received?

正解:

Question No : 10
Which result occurs when PortFast is enabled on an interface that is connected to another switch?

正解:
Explanation:
Enabling the PortFast feature causes a switch or a trunk port to enter the STP forwarding-state immediately or upon a linkup event, thus bypassing the listening and learning states.
Note: To enable portfast on a trunk port you need the trunk keyword "spanning-tree portfast trunk"

Question No : 11

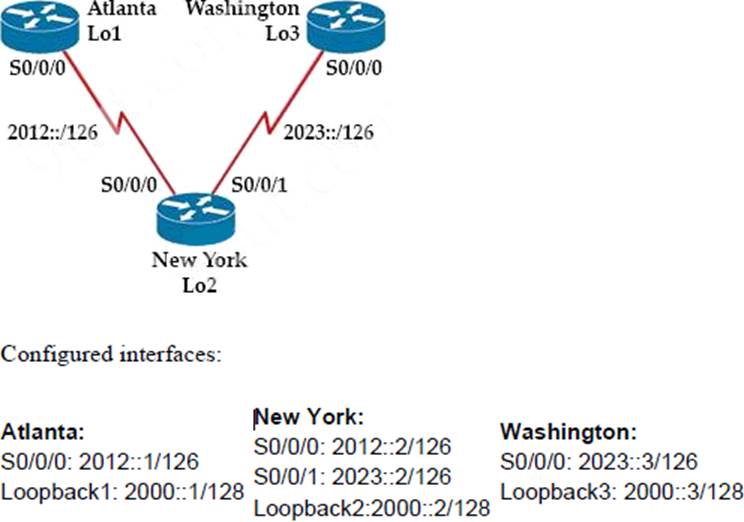

Refer to the exhibit.



The New York router is configured with static routes pointing to the Atlanta and Washington sites.
Which two tasks must be performed so that the Serial0/0/0 interfaces on the Atlanta and Washington routers can reach one another? (Choose two.)

正解:
Explanation:
The short syntax of static IPv6 route is:
ipv6 route <destination-IPv6-address> {next-hop-IPv6-address | exit-interface}

Question No : 12
Which two tasks must be performed to configure NTP to a trusted server in client mode on a single network device? (Choose two)

正解:
Explanation:
To configure authentication, perform this task in privileged mode:
Step 1: Configure an authentication key pair for NTP and specify whether the key will be trusted or untrusted.
Step 2: Set the IP address of the NTP server and the public key.
Step 3: Enable NTP client mode.
Step 4: Enable NTP authentication.
Step 5: Verify the NTP configuration.
Reference: Click here

Question No : 13
Which 802.11 frame type is association response?

正解:
Explanation:
There are three main types of 802.11 frames: the Data Frame, the Management Frame and the Control Frame. Association Response belongs to Management Frame. Association response is sent in response to an association request.
Reference: https://en.wikipedia.org/wiki/802.11_Frame_Types

Question No : 14
Which action is taken by a switch port enabled for PoE power classification override?

正解:
Explanation:
PoE monitoring and policing compares the power consumption on ports with the administrative maximum value (either a configured maximum value or the port’s default value). If the power consumption on a monitored port exceeds the administrative maximum value, the following actions occur:
C A syslog message is issued.
C. The monitored port is shut down and error-disabled.
C. The allocated power is freed.
Reference: https://www.cisco.com/c/en/us/td/docs/switches/lan/catalyst6500/ios/12-2SX/configuration/guide/book/power_over_ethernet.pdf

Question No : 15
Which two outcomes are predictable behaviors for HSRP? (Choose two)

正解:
